Features

prominent enclosures special features

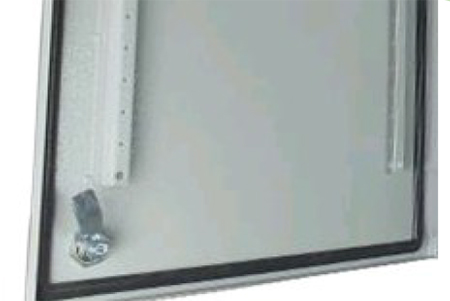

PU Gasket
  • Ensures higher IP Thoughout the Life.
  • Foamed in on the doors directly using Robotic automatic precise machine.

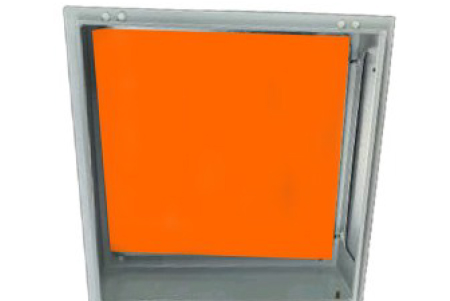

GI Mounting Plate
  • 2mm Powder coated RAL2000 steel mounting plate.
  • Modular construction to ensure site assembly.

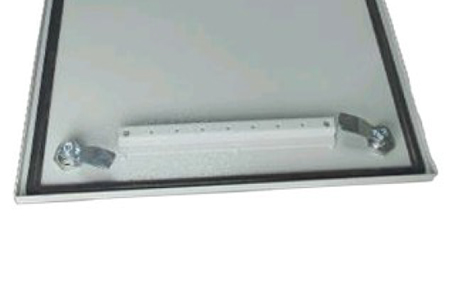

Door Stiffeners
  • Specially designed door stiffeners ensures additional strength to door.
  • Works as cable routers from door to the enclosure.

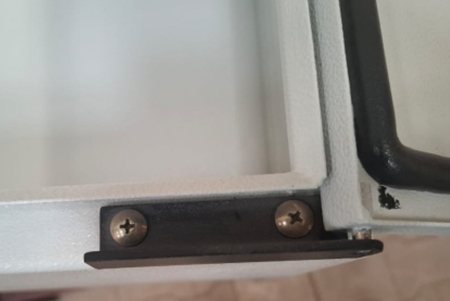

Interchangeable Doors
  • Easily Swapable door hinges from left to right hand side.
  • Pre Interchangeable Provided for easy changing of doors.

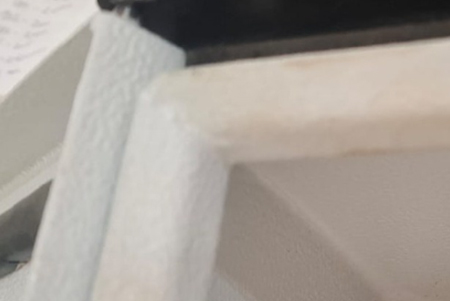

IP Channel
  • This speically designed channel ensures PU gasket has additional profection.
  • Prevents entry of dust and foreign particals in the event of door opening.

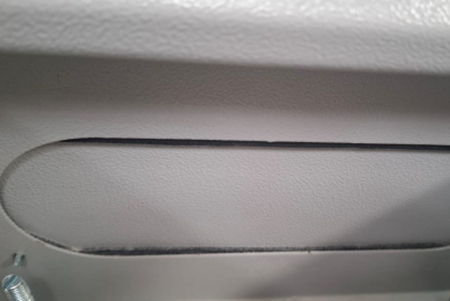

Gland Plate
  • Made of Sheet steel for simple machining.
  • Easily Detachable.

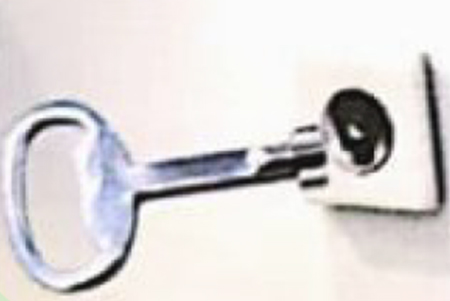

Lock
  • Sturdy Metal Door Lock Provided.

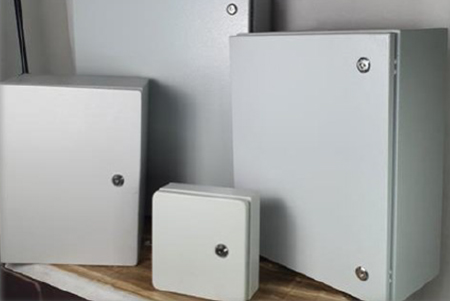

Wide Range of Sizes
  • Available in 27 standard sizes from 200x200x150 upto 1200x1400x400
  • Single and double door
  • Customized boxes also to be made after design discussion and as per feasibility
S. No. Part No. Panel Size (WXHXD) Type
1 PE-ENC-202015 200x200x150 Single Door
2 PE-ENC-303015 300x300x150 Single Door
3 PE-ENC-304015 300x400x150 Single Door
4 PE-ENC-304020 300x400x200 Single Door
5 PE-ENC-403020 400x300x200 Single Door
6 PE-ENC-404020 400x400x200 Single Door
7 PE-ENC-405020 400x500x200 Single Door
8 PE-ENC-505020 500x500x200 Single Door
9 PE-ENC-406020 400x600x200 Single Door
10 PE-ENC-506020 500X600X200 Single Door
11 PE-ENC-507030 500X700X300 Single Door
12 PE-ENC-604020 600x400x200 Single Door
13 PE-ENC-606020 600x600x200 Single Door
14 PE-ENC-606030 600x600x300 Single Door
15 PE-ENC-607020 600x700x200 Single Door
16 PE-ENC-608030 600x800x300 Single Door
17 PE-ENC-808030 800x800x300 Single Door
18 PE-ENC-8010030 800x1000x300 Single Door
19 DE-ENC-801203 800x1200x300 Single Door
20 PE-ENC-1010030 1000X1000X300 Double Door
21 PE-ENC-1012040 1000x1200x300 Double Door
22 PE-ENC-1012040 1000x1200x400 Double Door
23 PE-ENC-1214030 1200X1400X300 Double Door
24 PE-ENC-1014040 1000x1400x400 Double Door
25 PE-ENC-1214040 1200X1400X400 Double Door
26 FIRE BOX 500X500X250 Single Door
27 FIRE BOX 500X500X500 Single Door
